The intention is to cover in detail all of the SSS Stratocasters Made in Mexico. They were first produced at the beginning of the 1990s and are still being produced, there are a huge number of varieties and models.
These are models 13-4602 Maple Neck and 13-4600 Rosewood Board There are too many colour changes to attempt to list these so I won't. Specifications changed many times too and I will try and list these changes although in some cases the exact year isn't clear or different sources claim different years.
|Headstock||1 butterfly string tree, truss rod adjuster at headstock|
|Logo||Modern thick silver changed to Black 70s style in 2009 around this time the serial number was moved to the back of the headstock.|
|Pickguard||White laminated 11 screw white controls, changed to parchment 2009|
|Bridge||6 pivot vintage vibrato unit|
|Neckplate||4 bolt no micro tilt|
|Neck||Fretted Maple or Maple with Rosewood satin finish tinted from 2009 profile see below 9.5" radius|
|Frets||21, vintage until 2005 medium jumbo thereafter|
|Body||Poplar changed to Alder around 2003 veneered until 2011 see below for left handed models|
|Pickups and controls||3 white single coil ceramics 6 polepiece 5 way selector|
|Switches and Pots||Cheap switch and small pots until around 2000 when switched to CTS pots and better switch the same ones as the US standard|
Some specification notes
In the 90s the neck profile was described as shallow U, the first reference to it being modern C is in 2003, whether this represents a drastic change or just a terminology change is hard to tell without getting hold of two guitars of the different periods and comparing.
The left handed standard was actually model 27-4620 so Made in Japan made of Basswood The true Mexican Left handed standard made of poplar was released in either 1997 or 1998. This is Model 13-4622 Maple neck or 13-4620 Rosewood Board
The trem block was changed to a high mass zinc block in 2006 and full shielding was included
There were many of these here are the some I can find details of at the moment:
|Splatter||2003||Body painted in splatter colour with matching pick guard|
|Satin||2003-2006||Satin finish 3 black six polepiece pups and black 11 screw laminated pickguard available in Gun Metal Blue, Midnight Wine, Candy Apple Red or Midnight Blue|
|FMT||2005-6||Satin finish with black laminated 11 screw pickguard in Candy Apple Red, Gun Metal Blue, Midnight Blue and Midnight Wine. Maple or Rosewood Boards|
|60th Anniversary||2006||Silver Grey Body, Maple neck and commemorative neckplate|
|Roland Ready||1998 onwards||Rosewood on Maple board Roland pickup and controls added|
|Tex Mex||1996-7||Vintage style thin logo in gold, 3 white tex mex pickups|
|Plus Top||2014||Flame Maple Top, 3 ply parchment pickups and controls Rosewood Board and Tobacco Sunburst or Maple Board with Cherry Burst|
|Satin||2014 onwards||Satin Finish, Rosewood Board with Flame Orange or Ocean Blue, Maple with Arizona Sun or Blaze Gold|
This is a short lived model with some differences to the Standard SSS models. It was around for a year before being replaced
by the Jimmy Vaughan Tex-Mex (see artists' models).
Body: Poplar laminate with veneer on the sunburst models.
Headstock see picture below.
Fingerboard: Rosewood or Maple 9.5” 241/mm Radius
Frets: 21 Medium Jumbo Nickel Silver Frets
Nut: 1 11/16" (43mm)
Machine Heads: Vintage Style
Bridge: Vintage Style Tremolo
Pickguard: 3-Ply White/Black/White
Pickups: Tex-Mex Trio (Calibrated, overwound, single coils)
Pickup Switching: 5-Position Blade Switch
Controls: Master Volume, Tone (Neck), Tone (Mid)
Colors: (306) Black, (309) Candy Apple Red, (332) 2 Color Sunburst, (341) Vintage White, (372) Sonic Blue (Polyester Finish)
Other Features: Models produced in 1996 will have 50th anniversary sticker on the headstock.
Available in 1996 and 1997
This is a special edition of 200 units made in 2004. It has a body and matching headstock in a sparkle which flips from green to blue depending on light, angle and such.

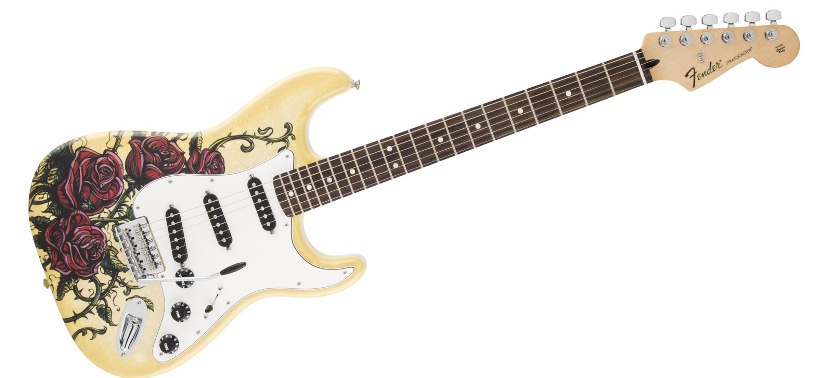

In 2015 the artist David Lozeau designed 4 stratocasters for Fender which were released as FSRs not sure of the numbers but a few of these have turned up. He also designed a further one released in a limited edition of 100. There were also 2 custom shop guitars but that's not for here.These all had the same specs as a MIM standard.
As at February 2017 the SSS Standard is available in the UK in Arctic White, Black, Brown Sunburst,
Candy Apple Red or Lake Placid Blue all with Maple or Rosewood. Retailing at around £550 or so. The Plus top
version being around £650 is available in Aged Cherry Burst with Maple or Tobacco Sunburst with Rosewood.
In 2018 the standard strat is still available but in Sunburst only with either a Maple or a Pau Ferro Board.
One or two very early models have turned up with very odd specs. It seems that there were a few made in those days with
very random parts. Here's a quote from a post on strat talk from "harrysmo"
I contacted someone at Fender Customer Support by email with questions about 1990 MIM's. They responded with telling me that 1990 was the year they first started making strats in Ensenada. There were chronic parts shortages while ramping up production. They would get parts from wherever they could to build guitars. They even bought parts from non-Fender suppliers to meet production goals. The Schaller-style tuners were probably bought from an aftermarket supplier, hence no "Fender" designation. The bodies were acquired from U.S. Fender and Squier. The necks were resourced from all Fender divisions to meet demands.
One turned up that appeared to have a US AVRI neck, some pictures
The Squier series and the Traditional are the same guitar the name was changed in 1996 but nothing else except a change
to a 3 ply pickguard. Despite the different name they are both Model 13-3602 Maple neck 13-3600 Rosewood board or 13-3620
Left handed with a Rosewood Board.
They are a cheaper guitar than the Standard model having cheaper components fitted, such as the Trapezoid tuners.
|Dates||Squier Series 1994-1996 Traditional 1996-1998|
|Headstock||Small with single string tree truss rod at headstock end|
|Pickguard||White 11 screw 3 ply laminated plastic on the traditional and single ply on the Squier series all with white controls|
|Bridge||6 pivot vintage style vibrato unit|
|Neckplate||4 bolt no micro tilt|
|Neck||Fretted maple* or maple with rosewood 21 frets 9.5" radius|
|Body||Poplar, Black, Arctic White or Torino Red*|
|Pickups||3 White pole piece single coil ceramics 5 way selector|
The left handed version was only available with a Rosewood board and wasn't available in Torino Red.
In 1997 they produced a limited edition of Hank Marvin signature stratocasters in Fiesta Red. 300 units were produced of what was just a different coloured traditional with a signature and only available with a Maple board.
A word about available colours
I have shown what colours were available at different times for some of these guitars if you see one in other colours it doesn't mean it isn't genuine, there are lots of FSRs and short runs of colours which never appear in catalogues.
