Can't find anything in the Fender literature about any 2016 models but there are a couple for sale around the web.
This info is from those sales so nothing official

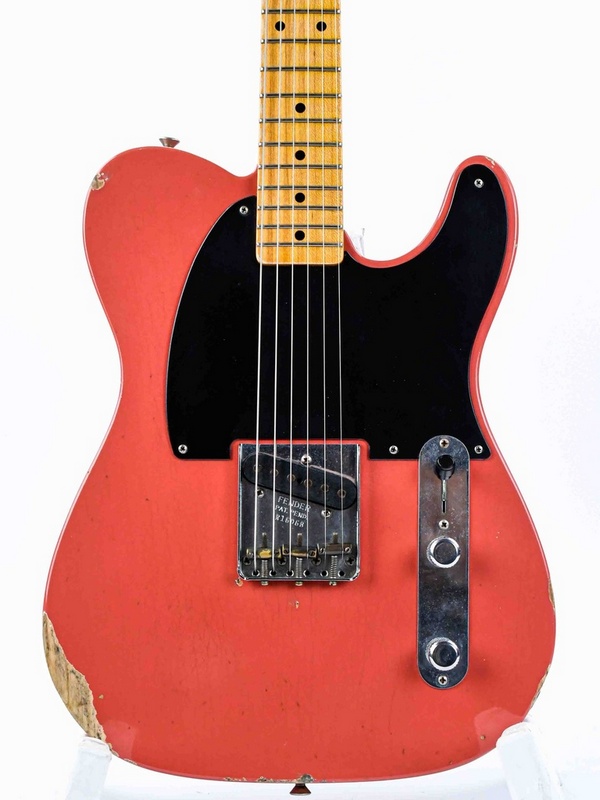

Body Ash Journeyman relic
Neck Maple U shape one Ad says Fat C
Maple board 9.5" radius 21 6105 frets
Nut 42.2mm
Pickguard single ply black
Pickup registers 9.87K
Bridge 3 saddle brass
Full Throttle wiring
P1 – Volume & tone control
P2 – Volume control only (no tone control)
P3 – Pickup routed directly to jack - no volume or tone control
Vintage style tuners
Colour Tahitian Coral

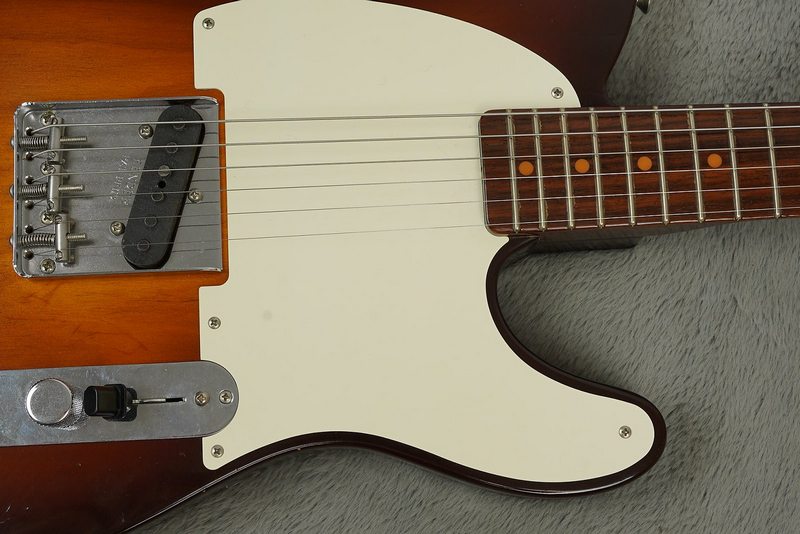

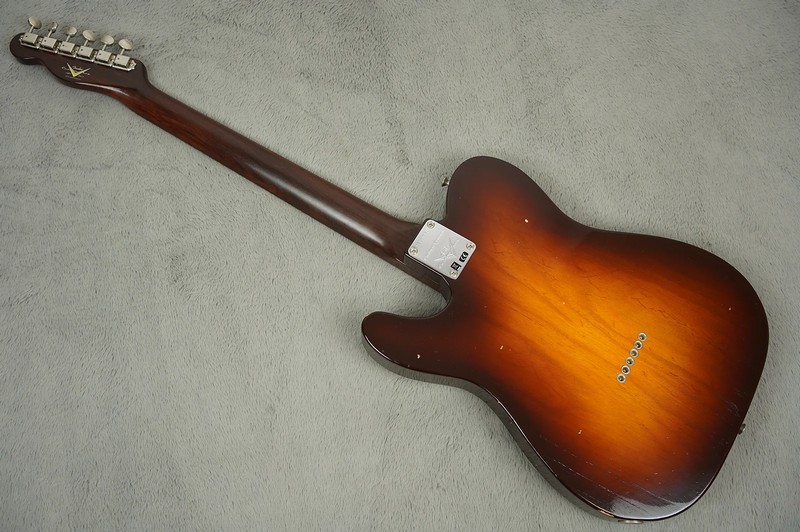

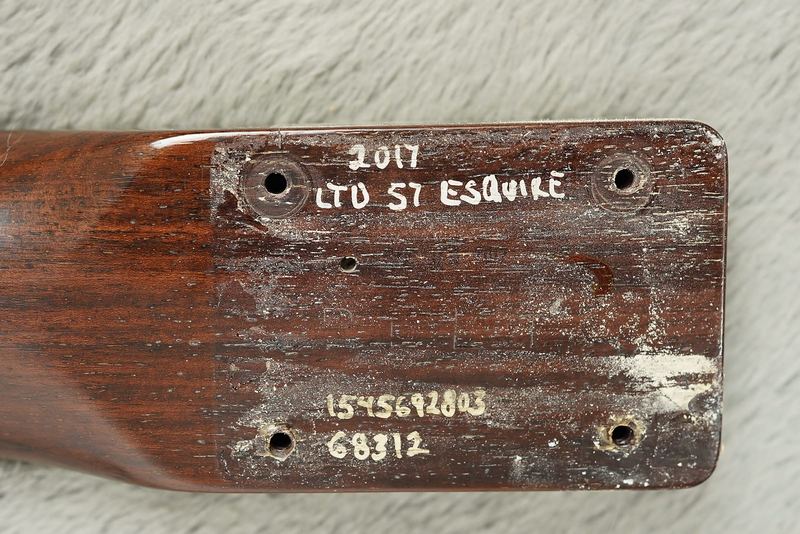

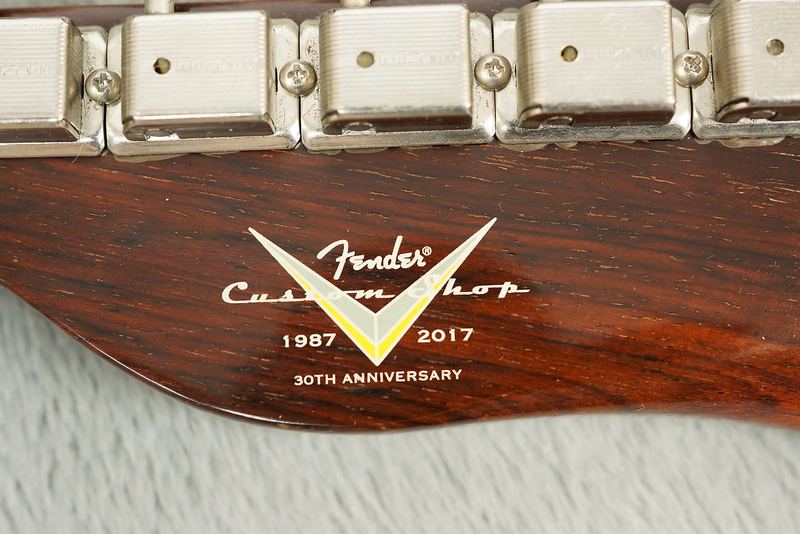

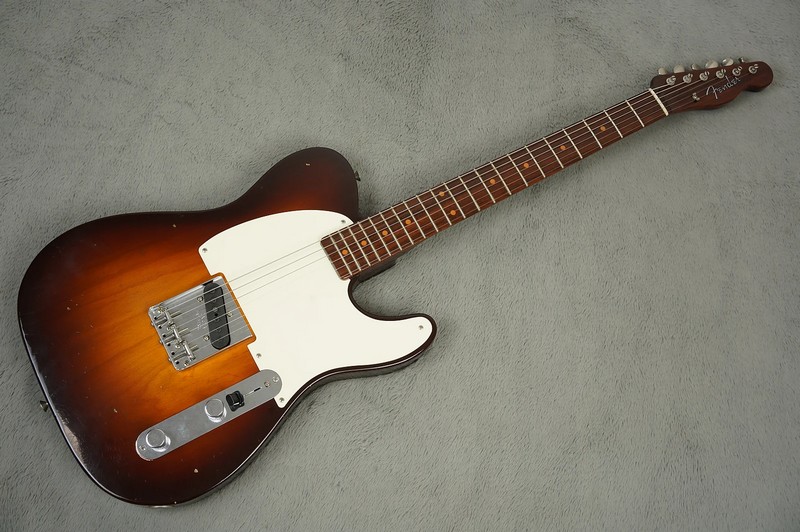

This is slightly unusual unusual in that it features a Rosewood neck. Whilst not shown in the Fender Literature as

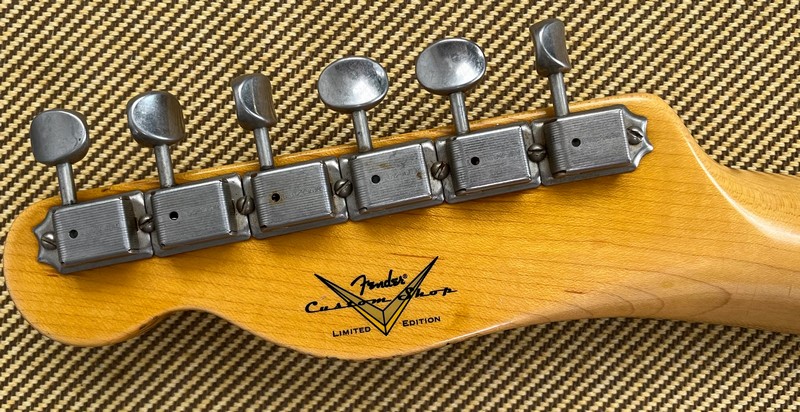

an Anniversary Model the back of the headstock says 30th Anniversary possibly just telling you its the Custom Shops

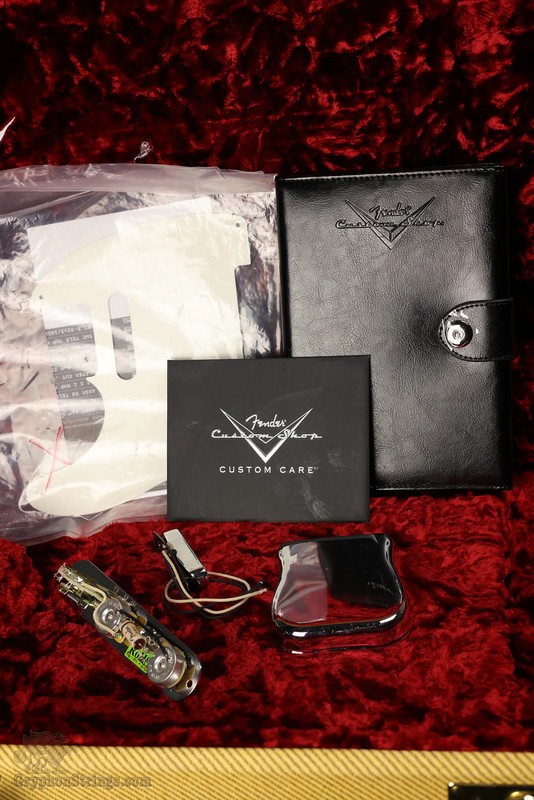

30th year. See pictures. Also includes the kit to convert to 2 pickups.
Model Number 154-5692-803
Body 2 piece select Ash NCL Finish
Neck Rosewood quarter sawn 57 V shape
Round Laminated Rosewood board with 9.5" radius and 21 6105 frets reddish dot markers.
Hand Wound 58 pickup plus additional tele neck pickup
Full throttle Esquire wiring see previous model
I ply parchment pickguard
55-57 Tele bridge with steel saddles
Bone Nut

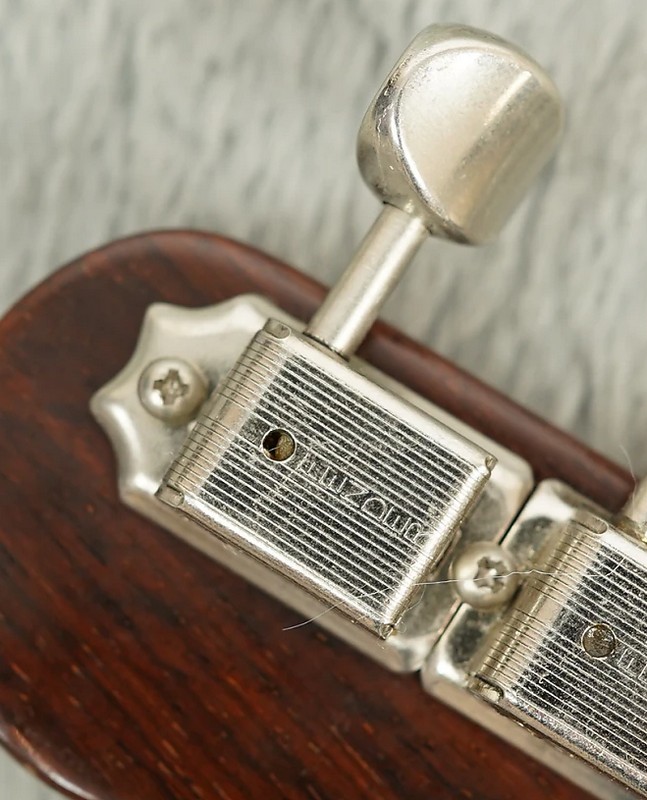

Vintage style tuners Fender Stamped
Chocolate 2 Colour Sunburst only
*P1 – Volume & tone control
P2 – Volume control only (no tone control)
P3 – Pickup routed directly to jack - no volume or tone control
There are at least 3 Custom Shop LEs in 2018 all they are:
Vintage Custom 1950 Double Esquire 923-5000-563
Nocaster Blonde only
2 piece off centre seam Ash body NOS Flash Coat NCL
1 piece tinted rift sawn Maple Neck with 7.25" to 9.5" Compound radius 10/56 V shape
with 21 Jescar 50085 Frets
2 Hand wound 50-51 Blackguard Tele pickups
3 way switch 1 Volume 1 Blender modified 51 Nocaster wiring
Bone Nut
Single ply black phenolic pickguard
51-54 Tele vintage bridge with 3 brass saddles
This one is in more than one catalogue so not that Limited Edition
Journeyman Relic Double Esquire Special 923-5000
551 Wide faded 2 Colour Sunburst

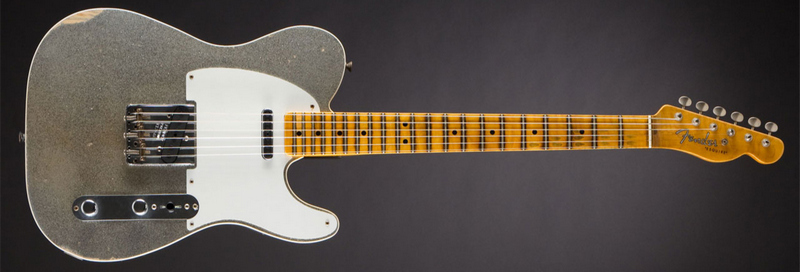

552 Silver Sparkle
553 Aztec Gold
Top Bound Ash NCL
1 piece AAA Maple Neck 10/56 V shape 9.5"
with 21 6105 Frets
2 Hand wound loaded Nocaster pickups
3 way switch 1 Volume 1 blender modified 51 Nocaster wiring
Bone Nut
Single ply 5 hole eggshell pickguard
51-54 Tele vintage bridge with 3 brass saddles
Journeyman Relic Esquire Custom 923-5000
529 Faded Chocolate 3 Colour Sunburst
530 Aged Shoreline Gold
531 Faded Lake Placid Blue
532 Inca Silver
2 piece Select Alder (Ash on Sunburst) NCL
1 piece tinted quarter sawn Maple Neck large C
Rosewood board 9.5" radius with 21 6105 Frets
2 Hand wound 58 Tele pickup
3 way switch 1 Volume 1 TonFull throttle Esquire wiring see earlier models
Bone Nut
Single ply parchment pickguard
58-63 Tele bridge with threaded steel saddles
2 pickup conversion kit

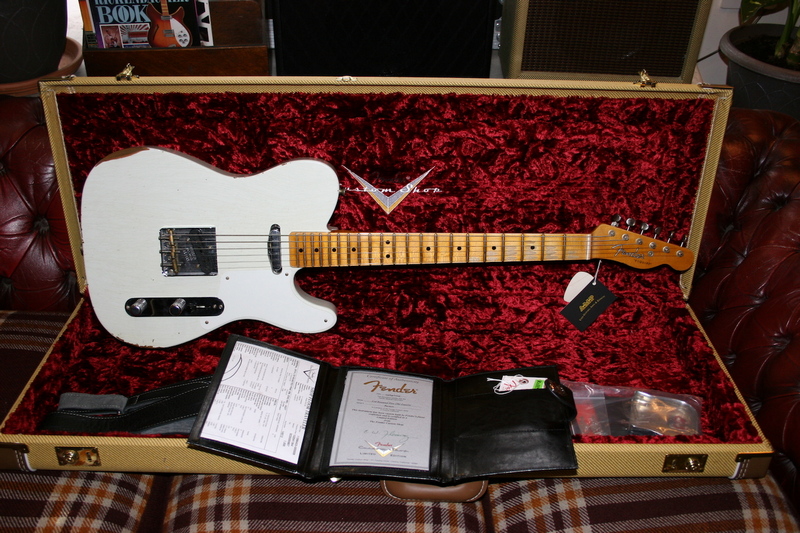

923-5000-866 Aged Black 867 55 Desert Tan 868 Aged Copper
Roasted Pine body Relic lacquer finish
Tinted Rift Sawn Maple Neck with 10/56 "V" Back-Shape 7.25"-9.5" Radius 21 Medium Vintage Frets
Hand-Wound Crushed Blackguard (Bridge) and Hand-Wound 50-51 Blackguard Neck Pickups
3-Way Switch
51 Modded Nocaster Wiring
1-Ply Eggshell cut down Pickguard
Reverse Nocaster Bridge with RSD Saddles
Vintage-Style Tuning Machines
Bone Nut
The switching Position three provides a twist on the “rhythm” tone, while position two offers the neck pickup
solo, wired directly to the volume pot, and position one is the bridge pickup alone, with volume control and blend for the neck pickup.

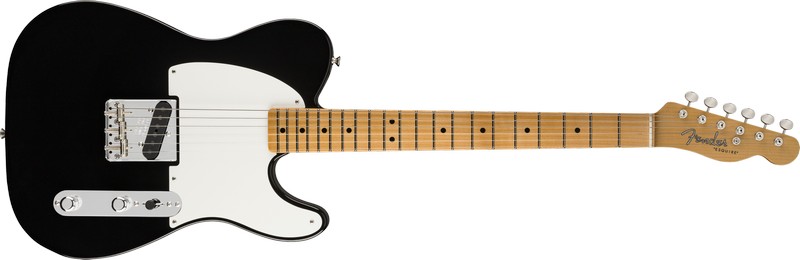

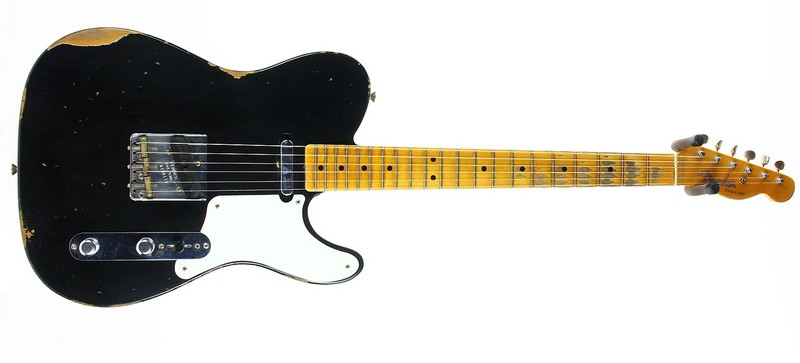

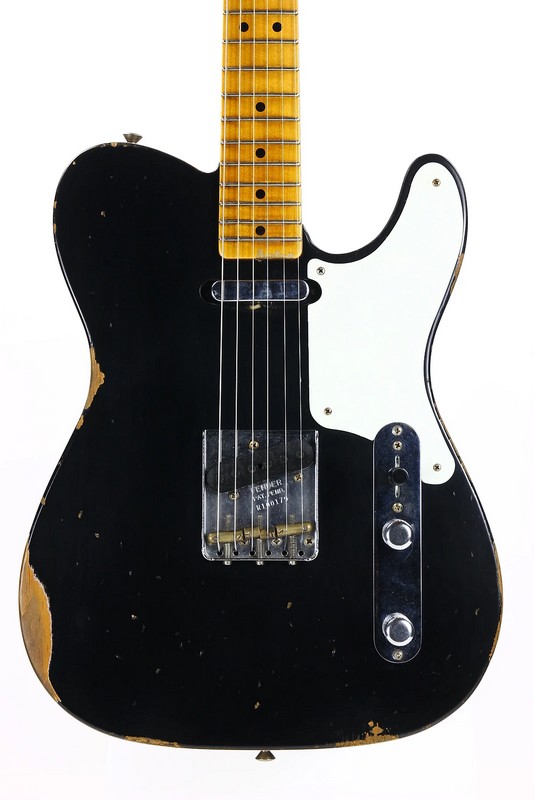

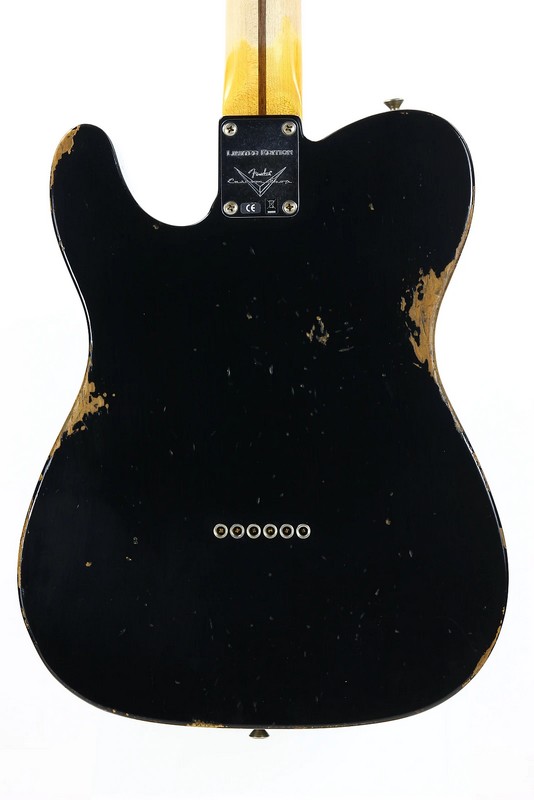

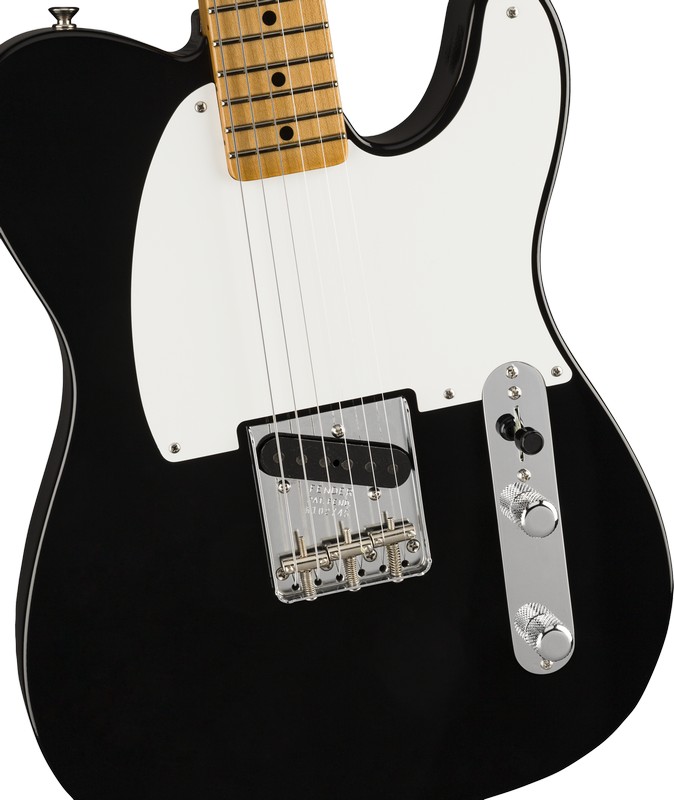

Released in 2020 which is of course a 70th Anniversary of the Esquire this is model 923-5001-175 in aged black. Being an anniversary
year means others were released including a 2 pickup Thinline Esquire which I will ignore as ridiculous.
The Fender blurb
Perhaps the rarest Fender® guitar is its first one - the single-pickup pine-body Esquire. The very first Fender
electric solid-body guitar. Wasn't even around for a full year, and yet it changed guitar music forever. Fender shipped
barely a handful of them before changing the body to ash and the finish to blonde.
This guitar is not a very limited edition it is in more than one catalogue.
Specs
Vintage Custom 1950 Pine Esquire, Maple Fingerboard, Aged Black
Body Thinner 2-Piece Sandwich Style Pine Flash Coat Lacquer
Neck 1-Piece Rift Sawn Maple 1950 Esquire "U" shape NCL finish
Fingerboard Maple 7.25" to 9.5" Vintage Compound Radius (184 mm to 241 mm)
Frets 21 Medium Vintage
Nut: Bone 1.650" (42 mm)
Bridge Pickup: Custom Shop Hand-Wound '50-'51 Blackguard
Controls: Master Volume, Master Tone
Pickup Switching: 3-Position Blade
Position 1. Pickup Straight to Output Jack
Position 2. Pickup with Volume Control, Position
3. Pickup with Volume and Tone Control
Bridge: 3-Saddle '50 Esquire® with Original Style Steel Saddles
Tuning Machines: Vintage-Style
Hardware Finish: Chrome
Pickguard: 1-Ply Eggshell
Control Knobs: Knurled Dome

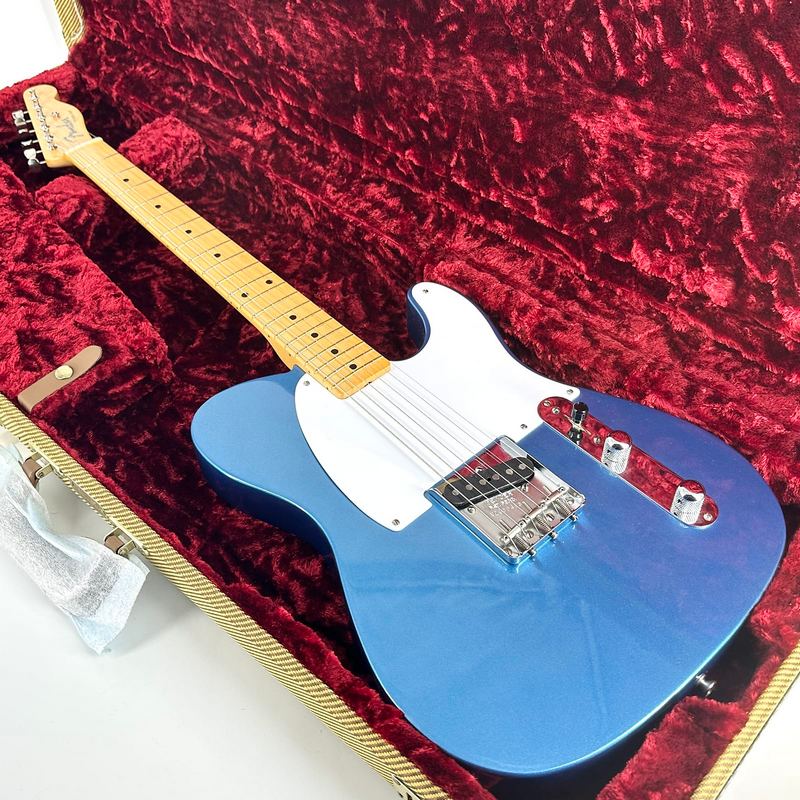

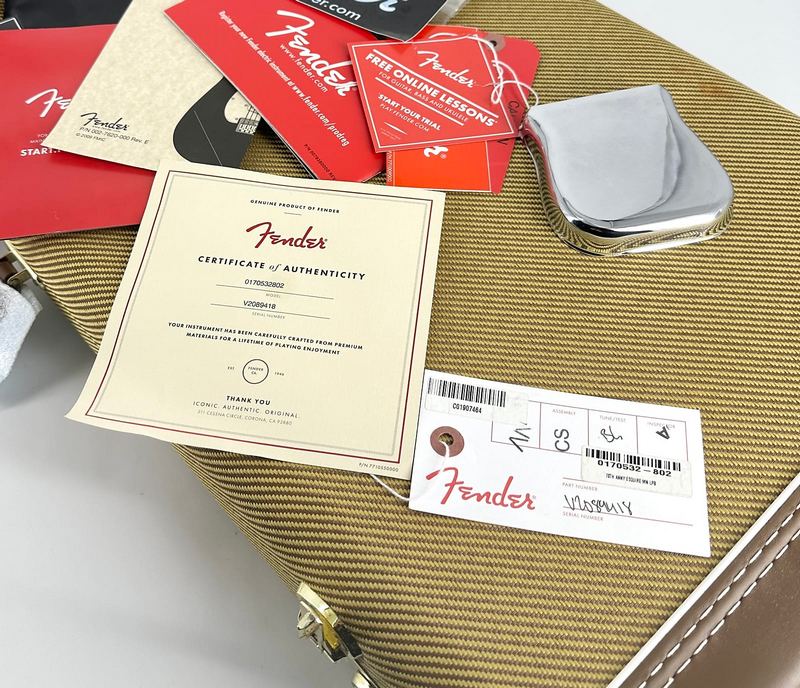

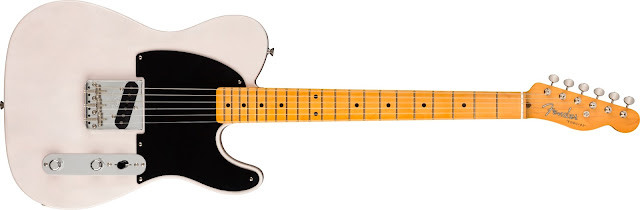

Model number 017-0532-colour. Not custom shop just an FSR in 4 colours White Blonde, 2 Colour Sunburst, LPB or Surf Green.
Again no info on how many made but I suspect a fair few
Body Roasted Pine with NCL finish
Neck Maple U shaped 21 Vintage tall frets
Bridge Vintage through body tele with 3 solid steel barrels
Bone Nut 1.65"
Pickup Tim Shaw designed vintage style single coil
The Shaw pickup is controlled by master volume and tone knobs, as well as, in classic Esquire fashion, a three-position blade switch
that offers a range of sonic options, including preset treble roll off and the ability to engage or bypass the tone control
All screws are slot head
Chrome Hardware
Hard case

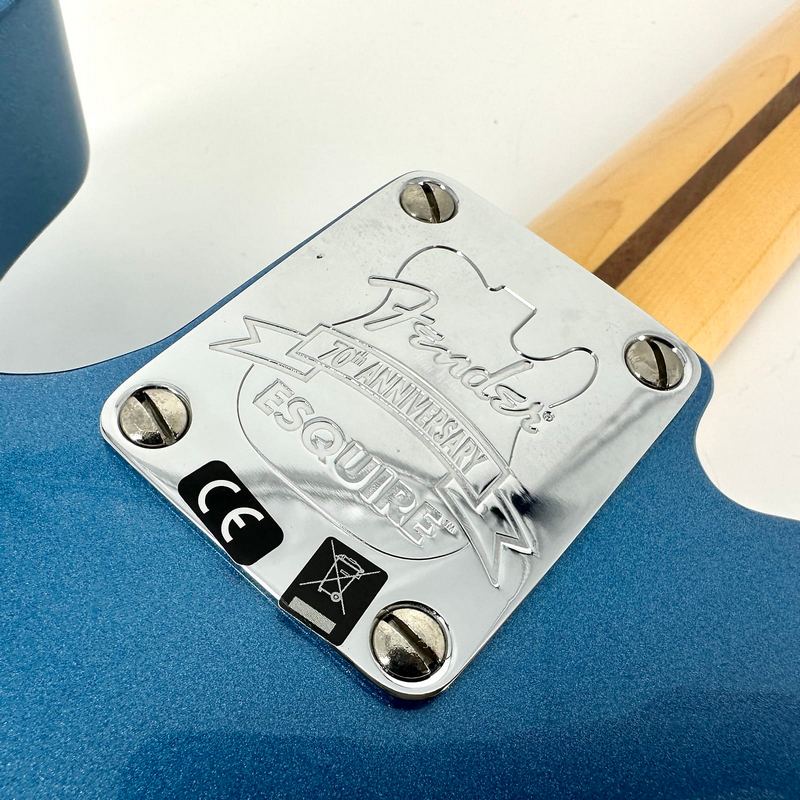

Commemorative Neckplate

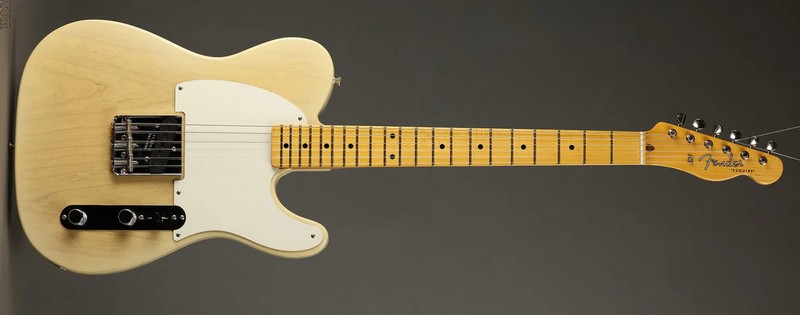

2022 Custom shop offering 923-5001-544 still available 2025
Body 2-Piece select Ash Flash Coat Lacquer
Neck 1-Piece Rift Sawn Maple 59 Esquire "D" shape NCL finish
Fingerboard Maple 7.25" to 9.5" Vintage Compound Radius (184 mm to 241 mm)
Frets 21 Medium Vintage Jescar 47905
Nut: Bone 1.650" (42 mm)
Bridge Pickup: Custom Shop Hand-Wound 58 Tele
Controls: Vintage Esquire
3-Position Blade: Position 1. Bridge (Tone control off)
Position 2. Bridge (Tone control on)
Position 3. Bridge (Tone control off, preset treble roll-off)
Bridge: 3-Saddle '59 topload threaded steel saddles
Tuning Machines: Vintage-Style
Hardware Finish: Chrome Closet Classic
Pickguard: 1-Ply Parchment
Control Knobs: Knurled Dome
Tele conversion kit
Faded Natural Blonde only
This one of four current models in 2025.

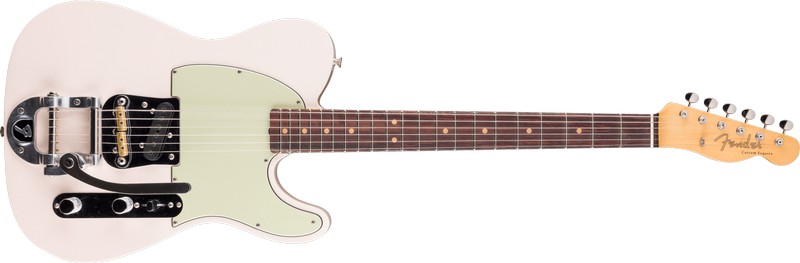

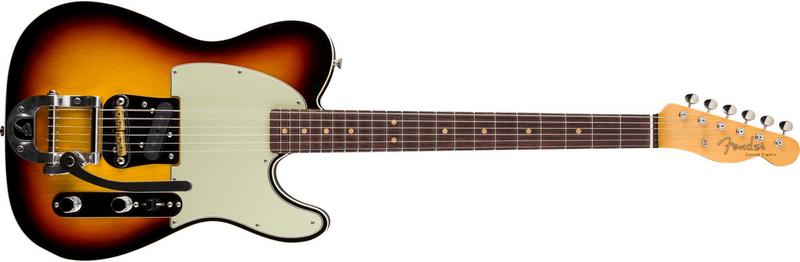

Time Machine series Model 923-5700 031 Faded Shell Pink or 029 Faded 3 colour Sunburst
Specs
Body 2-piece select alder with closet classic nitrocellulose lacquer finish
Neck rift sawn maple with a nitrocellulose lacquer finish. 60s Oval C shape, Compound Radius 7.25" to 9.5"
Fingerboard 3A rosewood 21 Jescar Medium Vintage frets
Nut bone 1.650" wide
Vintage-style tuning machines with Fender logos.
Bridge RSD Jaguar/Jazzmaster bridge. Brass RSD compensated saddles
Bigsby Vibrato Tailpiece
Pickup Custom Shop Hand-Wound Loaded '51 Nocaster®
3-position blade pickup switch
Position 1. Bridge (Tone control off)
Position 2. Bridge (Tone control on)
Position 3. Bridge (Tone control off, preset treble roll-off)
Mint Green 3 ply 8 hole pickguard

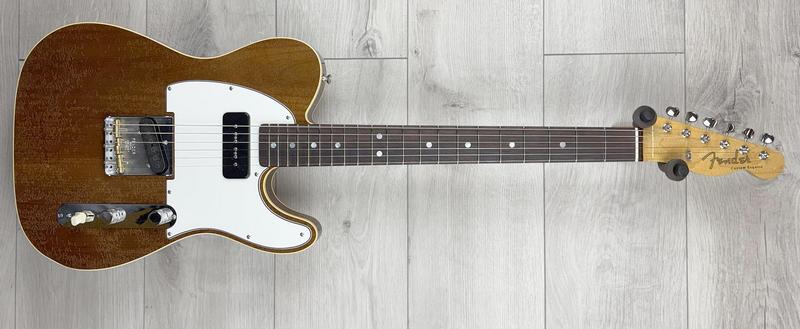

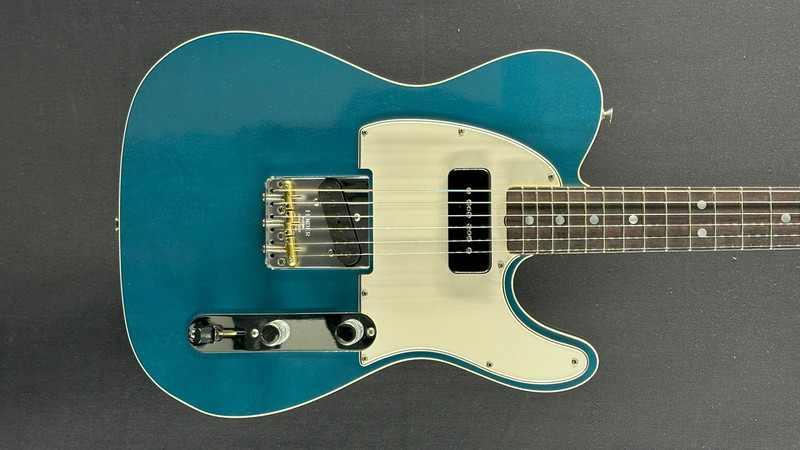

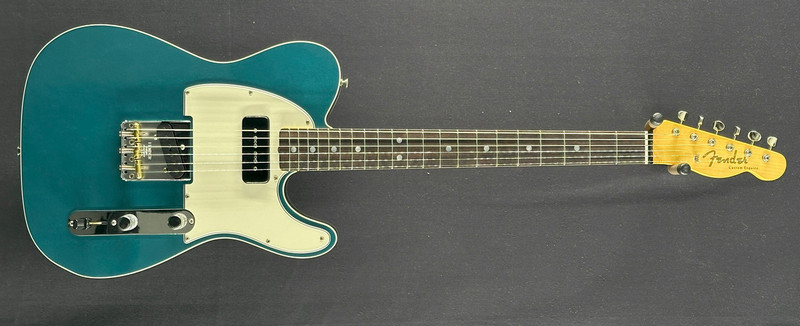

Model 923-5700 and 3 colours 080 Aged Natural 081 Aged Ocean Turquoise 082 Aged Copper
Specs
Body 2-Piece Offset Seam Roasted Alder Finish Nitrocellulose Lacquer Double bound
Neck Maple '60s Oval "C" NCL
Fingerboard 3A Rosewood Radius: 9.5" (241 mm) 21 Jescar Vintage (45085) Frets
Nut Bone 1.650" (42 mm)
Neck Plate 4-Bolt with Custom Shop "V" Logo, Serialized
Bridge Pickup Custom Shop Hand-Wound Loaded '51 Nocaster
Neck Pickup Seymour Duncan Antiquity P90 Dog Ear
Controls:Master Volume, Master Tone
Pickup Switching 3-Position Blade
Position 1. Bridge Pickup
Position 2. Bridge and Neck Pickups
Position 3. Neck Pickup
Bridge 3-Saddle '67 Telecaster with Threaded Steel Saddles
Tuning Machines: Vintage-Style with Fender® Logo
Hardware Finish: Nickel/Chrome
Pickguard 3-Ply Parchment
Control Knobs: Knurled Chrome Switch Tips: Top Hat Style, White

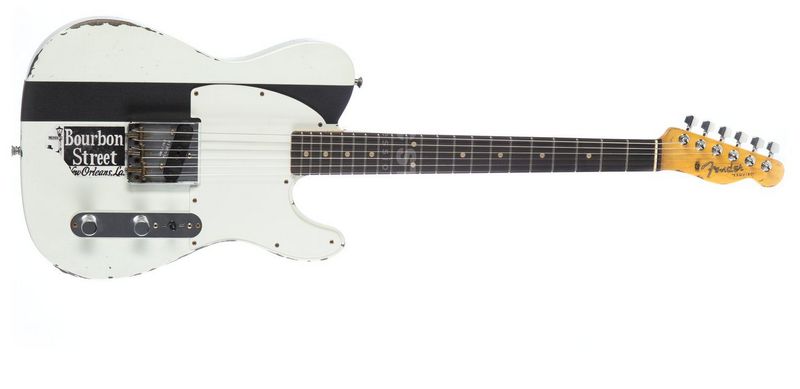

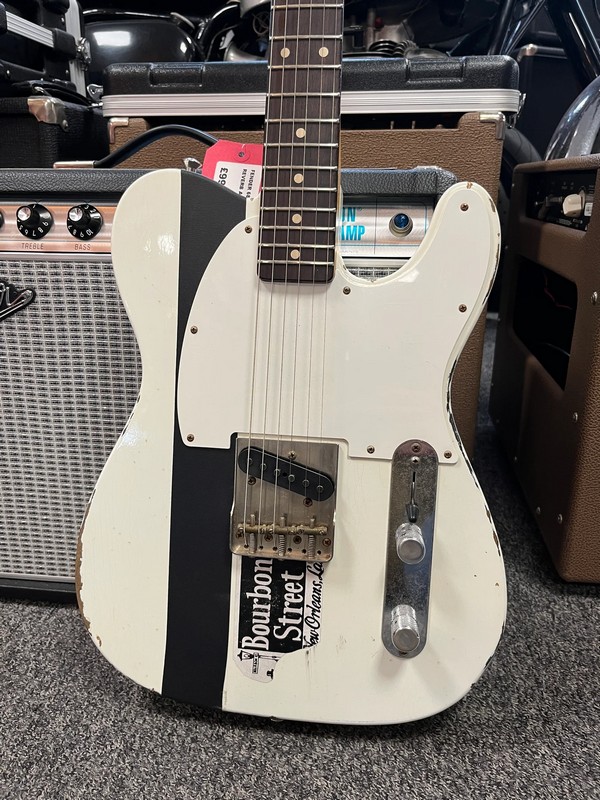

First released around 2021 said to be only 70 but I think there
are more than that about and that they made them later as well. Fairly obviously a recreation of Joe's guitar Fender say:
We are very happy to be able to re-create this incredible piece of music history in the Fender Custom Shop for a special
limited edition run. Master builder Jason Smith has reincarnated the Esquire to its Clash era look in exacting detail with
its black racing stripe, custom "Bourbon Street" sticker and custom Relic finish. Not just for the collector, this guitar is
built to take a beating and produce straight-ahead searing tone for anyone bold enough to wield it in combat on stage.
Specs
Body 2-piece offset seam alder Olympic White NCL Finish
Neck Flat-sawn maple a '59 "C" shaped profile
Rosewood fingerboard, 9.5" radius, medium jumbo frets
Schaller mini tuning machines
A top-load/string-through Tele bridge assembly
Josefina hand-wound 55/56 bridge pickup
3-way switch and a '59 Esquire wiring.
Single ply 8 hole Parchment Guard

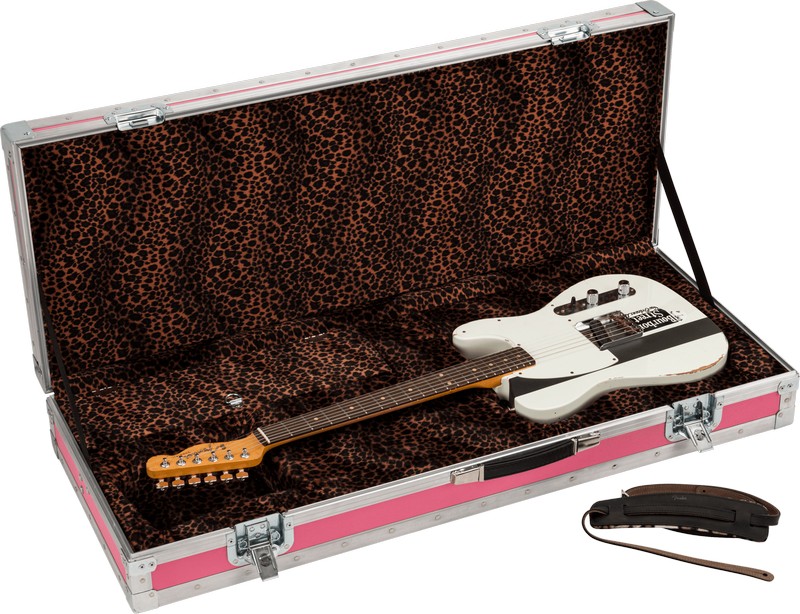

Custom pink anvil case with "Strummer" stencil and leopard print lining.
