Guitar

Bill Alston

Yamaha Studio Lord and Lord Player Guitars

Lord Player 800 Custom

Information on these guitars is not easy to find. They were made solely for the Japanese domestic market and Yamaha themselves did not export any of them. Therefore they only appear in the Japanese catalogues and not any of the English language ones. Some obviously made their way to the west including an SL400s which I own. In rewriting these pages I have had a lot of information from a SL LP collector called Dan. I am indebted to him for some great information

As with many things Yamaha the truth is often different to the catalogues and archives but they are the best source we have along with some information from owners. The timeline for these models is:
1976 The first SL series of 9 models launched the 380, 430, 500, 550, 650, 700, 800,1000 and 1200
1979 Further 6 SL Models added the 400s, 500s, 600s, 700s, 700c, 800s
1980 Original 9 models discontinued
1982 Old models all discontinued and replaced by 2 new models the 450s and 550s
1984 All SLs discontinued and replaced by the 5 LP Models the 400, 500, 600, 800 and 1000
According to the Archives all production ceased in 1985

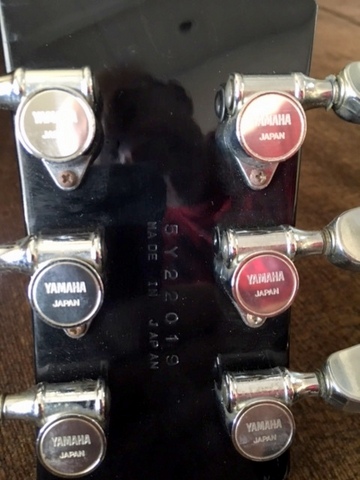

Dan has an LP 400 with a serial number of 5Y22019 which would indicate to me an earliest date of November 1986. This guitar has sealed Yamaha Chrome tuners instead of the plastic covered Kluson type. I have now seen more LP400s with these sealed tuners they all have E4 series serial numbers 5K19057 5X21010 and 5Z24002 the earliest these could be are April 1986, October 1986 and December 1986 respectively. I am now fairly certain that the archives are wrong and production of at least the LP400 continued until at least late 1986 and that the specs changed at least to the extent of there being these tuners. However I have yet to find any other LP models with this range of serial numbers so it may be just the LP400 that continued. See pictures at the bottom of the page. As often with Yamaha the number in the designation relates to the launch price in 100s of Yen. So a model designated as 800 would be released at 80,000 yen. This carries through to many other Yamaha ranges but not to all


Serial Numbers

There is a theory that these and Superaxes follow the published series for SGs and in most cases this appears to be true but some which are in the right format give you the wrong year and several have serial numbers that fit into no published format at all. The most reliable way of dating Yamahas is by the numbers on the back of the pickups however a lot of this range don't have the relevant numbers on the pickups. Here is a spreadsheet with a few example serial numbers

Serial Numbers

Some Miscellaneous thoughts


The model within the range is designated on the truss rod cover so every so often you may spot something odd which may be just a changed cover. Within the Lord Player range all models have Standard written on them except for the 800 which has custom written on. I have been unable to find any evidence to suggest that there may be variations in models such as an 800 standard or a 1000 custom, but it doesn't mean that they don't exist. There are 4 sunburst colours which are red sunburst, easily spotted, then brown sunburst, tobacco sunburst, violin burst and also oil skin, which can look quite similar.

Specifications of all models are in the pdf linked below, where I am in doubt it will be in red italics

Models Specifications

Some Photographs



Here we have three headstocks a 400LP with "plastic covered tuners", an SL1200 and 800LP Custom. Note the headstock shape on the earlier SL model.

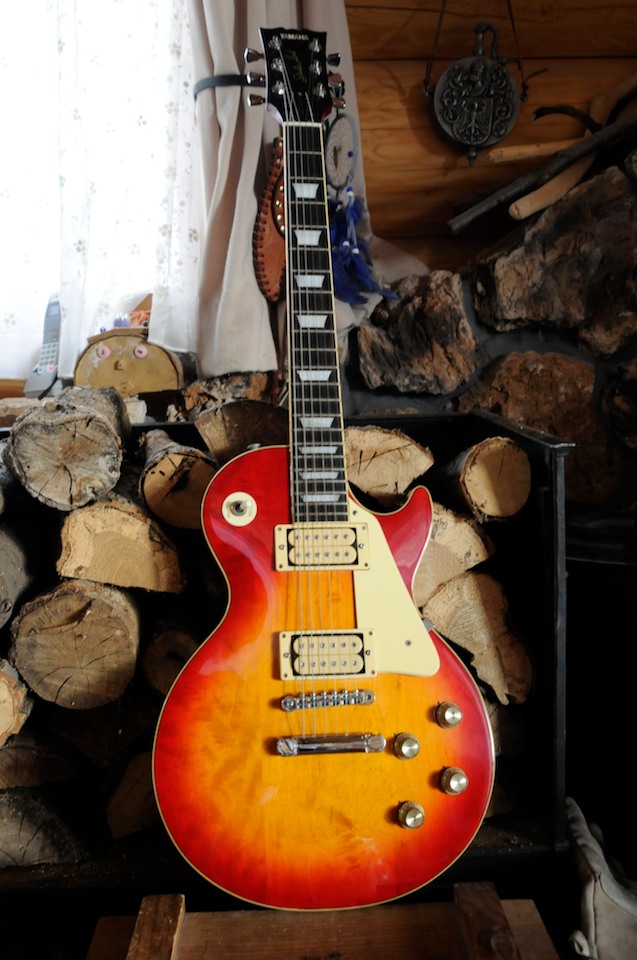

On the left an SL800s on the right an SL700s


Information following Email Exchanges with Don during March 2016


Don is a collector of guitars who has a several LPs and SLs and has provided me with information from his studies of them.

Don's ever changing collection of Lps and SLs

Below are some quotes from Don's E-mails


I have noted that the SL450 and SL550 versions of Studio Lords were very similar to the later model Lord Players, with somewhat slimmer necks, more consistent weights and a slightly more pronounced top carve than the heavy Studio Lords of the mid-late 70s. I also noted that one of my Studio Lord 450 models has the stamped serial numbers which are the same style as the Lord Player LP400 I recently bought, rather than the white applied serial numbers on my other Studio Lords.. I am guessing that this was a 1983 model, which came just before the Studio Lord's name change and re-alignment into Lord Player model These two guitars appear to be almost the same, leading me to believe that the SL450-SL550 models of 1982-1983 morphed into the Lord Player models of 1984.

I think one of the most interesting discoveries was the top carve differences from the mid-late 70s SLs and the subsequent SL450 and 550 and the Lord Player versions. This is quite subtle but there is just a bit more contouring on these 1980s Yamahas along with a slightly thinner neck carve.

Other information from these E-mails

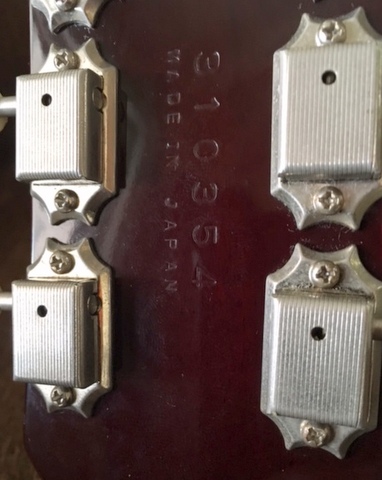

Don has pointed out as above a subtle change in the serial numbers that seems to have occured around 1983, this is a change on the SLs from a painted serial number to a stamped unpainted serial number which continued on to the LPs. Some photos to illustrate this.


This is the headstock serial number on my 1978 SL

This is the front and back of two of Don's guitars the Red one is the SL which he thinks is from 1983.


It is also interesting to note that the serial numbers on Don's guitars do not fit into any known Yamaha system maybe the 3 at the front indicates 1983 who knows. Maybe there is a set of numbers for the Japanese domestic models that we are unaware of.

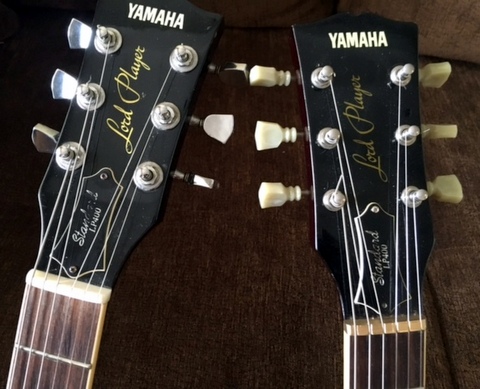

Some Pictures to illustrate the different types of tuners for different type serial numbers
