The RGX 600 range page 3

The remaining 612 range


In error I have omitted the 612J from the early models so I am including it here even though it was launched in 1987. The other two models are the 612 JS and 612V launched 1990 and 1991 respectively. All models are Made in Japan


612JS in Crimson Red

I have been unable to find any pictures of the 612V so if anyone has any I would appreciate you letting me have them

Model 612J 612JS 612V
Body Basswood or Basswood and Exotic Woods Basswood Alder
Neck Bolt on Maple Bolt on Maple Bolt on Maple
Fretboard Rosewood 350mm radius 628mm scale 24 Jumbo Frets Dot Markers 2 on 12th and 24th Fret Rosewood 350mm radius 628mm scale 24 Jumbo Frets Dot Markers 2 on 12th and 24th Fret Rosewood 350mm radius 628mm scale 24 Frets Markers not known
Hardware Black Black Black
Tuners Black Diecast Black Diecast Black Diecast
Bridge RM Pro RM Pro II RM Pro II
Pickups 2 YGS Alnico V SCs and 1 YGH Alnico V HB 2 Alnico V single Coils and 1 Ceramic Humbucker 1 Ceramic SC 1 Alnico V SC 1 Alnico V HB
Controls 1 Volume 1 Tone 5 way switch coil tap 1 Volume 1 Tone 5 way switch no coil tap 1 Volume 1 Tone 5 way switch coil tap
Colours Black, white, power red sunburst, navy blue sunburst Metallic black, crimson red, purple burst, silver metallic, dark green metallic Metallic black, silver metallic, lightning red, marine blue metallic
Produced 1987-91 1990-91 1991 limited edition

The 612J is basswood on the Black or White models and Basswood with exotic woods on the Power Red or Navy Blue Bursts


The 612J

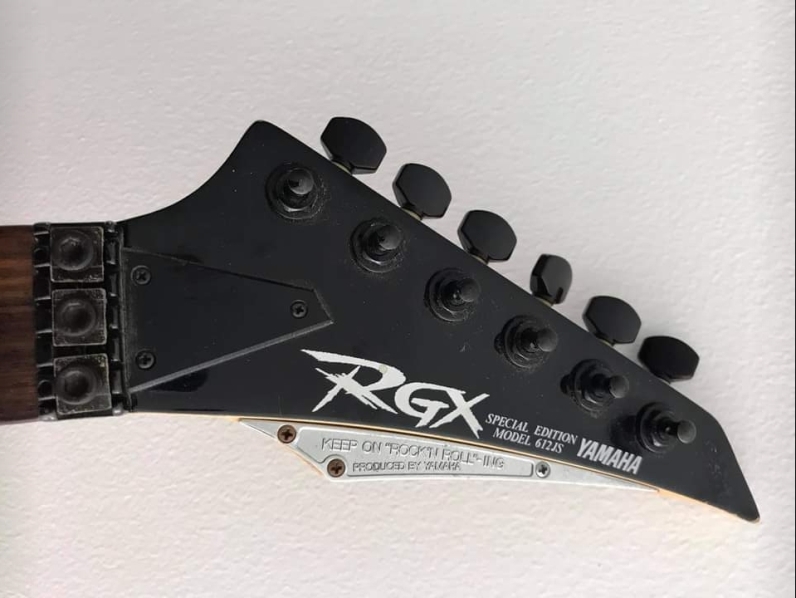

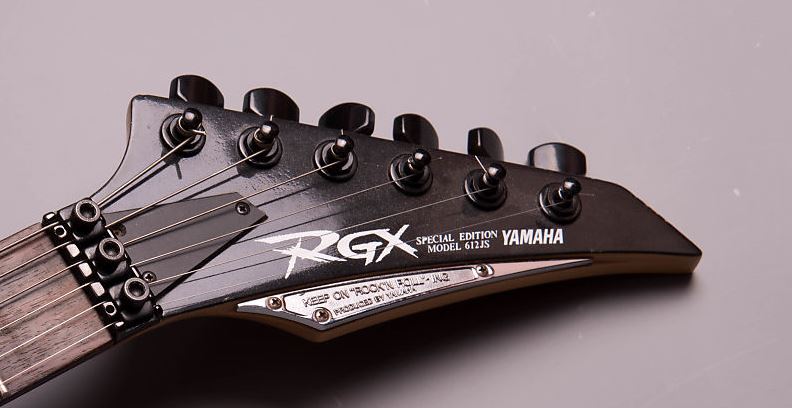

Comparison of the J and JS Headstocks I don't have a picture of the V I do now see headstock picture immediately above and August 2020 update below


Update May 2020
Nathan Mafan has sent me pictures of the 612JS he owned which had the free art pickguard this model doesn't appear in any catalogues so it's difficult to know if this was a standard offering, a one off order or an aftermarket modification but it looks original here it is




Update August 2020
Sergei Bondarenko from Russia has very kindly sent me pictures of his 612V see headstock above and further details below. Thank you Sergei


Sergei's guitar

The 621D and 621DM

Essentially the same guitar the only difference is the Maple board on the M. The Archives say 1993 to 1995 but they are in the 1996 Western catalogue but not in the 1997. These are the longer 648mm scale Specifications
Body Alder
Neck Bolt on Maple
Fretboard Rosewood or Maple 648mm scale 350mm radius 24 Jumbo Frets Dot Markers 2 on 12th and 24th Frets Scallopped on the 20th to 24th Frets high strings
Headstock Matching Yamaha in large letters model no. on the back
Tuners Black Diecast
Pickups 2 Ceramic Humbuckers and Alnico V single coil
Controls 1 Volume 1 Tone 5 way switch with coil tap in the 5 way
Nut 43mms locking
Hardware Black
Bridge TRS Pro
Pickguard None
Colours Black, blue metallic, red metallic, antique sunburst satin
Years available 1993 to 1996



This is the 621D

The 620Z and 620DZ

These guitars appear in the western catalogues only, the Z in the 2002 catalogue and the DZ in the 2006 catalogues, so we are at the time when the tuners are now 3 a side. The Z is made in Taiwan and the DZ in Taiwan or Indonesia depending on date

Model 620Z 620DZ
Body Alder FMT Alder FMT
Neck Bolt on Maple Bolt on Maple
Fretboard Rosewood 24 Frets 350mm radius 648mm scale dot markers Rosewood 24 Frets 350mm radius 648mm scale no markers on the face
Headstock Matching Yamaha written on front tuning fork logo 3 a side recessed tuners Matching Yamaha written on front tuning fork logo 3 a side recessed tuners
Nut 43mms not locking 43mms locking
Tuners 3 a side diecast black 3 a side diecast black cylindrical knobs
Pickups 2 Alnico V HBs 2 Alnico HBs
Controls 1 Volume 1 Tone 3 way switch 1 Volume 1 Tone 3 way switch
Produced 2002 to 2003 2005 to 2006
Colours Amber Burst, Deep Blue Burst or Trans Dark Red Trans Dark Red or Charcoal Grey
Bridge Yamaha R100V Finger Clamp Locking Bridge
As always some pictures


The 620Z



The 620DZ
