The RGX 500 range page 1

The 503


In 1986 and 1987 Yamaha launched 3 503 models, the 503J, the 503P and the 503R. Information and photographs are difficult to get. None of these were produced for very long and seem to have been domestic only 2 of them appearing in Japanese catalogues, and the other in no catalogue I can find. If they were domestic only they are likely to have been made in Japan. They seem to be very rare in the western market. All were released at 55,000 yen despite the J seeming to be higher spec. As far as I can tell there is no difference between the P and the R except for the headstock and different neck materials. If anyone does know of any other differences please let me know. One might believe that the R replaced the P but they both appear in the same catalogue.


The 503J
Specifications
Model 503P and 503R 503J
Body Basswood Basswood
Neck Bolt on Maple Mahogany on the P Bolt on Maple
Fretboard Rosewood 22 Frets 628mms scale 350mm radius dot markers Rosewood 22 Frets 628mms scale 350mm radius dot markers
Headstock see pictures below Black RGX 503J Yamaha usual keep on rockin script on undercut
Tuners Black Diecast Black Diecast
Hardware Black Black
Nut Black locking Black locking
Bridge RM II RMX II
Pickups 3 Alnico V YGS-A1CC 3 Yamaha Branded Select SCs by EMG
Controls Black 1 Volume 1 Tone 5 way switch Black 1 volume 1 tone 5 way switch
Colours Black, White, Fine Red Black, White, Sparkling Red
Made P March 86 to 87 R July 87 to 87 1987- 89

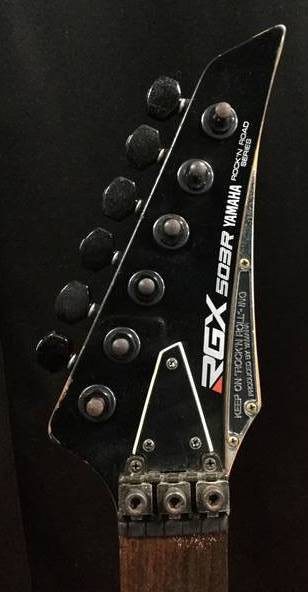

First of all the headstock differences P and R


Scans from the 87 Catalogue



A 503 body and a collage of some more details of the 503J


RGX 510S

This guitar was launched in 1987 a single humbucker model at 55000 yen. Made in Japan as one of their "Super Editions"
Specifications
Body Basswood
Neck Bolt on Maple
Fretboard Rosewood or Maple 628mm scale 350mm radius 22 Jumbo Frets Dot Markers
Headstock Black see picture for details
Tuners Black Diecast
Pickups 1 Alnico V Humbucker
Controls Black 1 Volume Built in direct circuit no coil tap
Nut Black locking
Hardware Black
Bridge RM II
Pickguard Black
Colours Black or White
Years Produced 1987 only

Some pictures

The RGX 512 Models

5 models were releases from 1986 to 1991 all were made in Japan

Model 512P 512R 512J 512JS 512V
Body Basswood Basswood Basswood Basswood Alder
Neck Bolt on Mahogany Painted Black Bolt on Maple Bolt on Maple Bolt on Maple Bolt on Maple
Fretboard Rosewood 22 Frets 628 scale 350mm radius dot markers Rosewood 22 Frets 628 scale 350mm radius dot markers Rosewood 22 Frets 628 scale 350mm radius dot markers Rosewood 24 Jumbo Frets 648 scale 350mm radius dot markers with 2dots at 12th and 24th fret Rosewood 24 Frets 648 scale 350mm radius dot markers with 2dots at 12th and 24th fre
Bridge RM II RM II RMX III RMX III RMX III
Headstock see pictures
Pickups 2 YGS A100 Alnico V SCs 1 YGH-F1BO Humbucker 2 YGS A100 Alnico V SCs 1 YGH-F1BO Humbucker Yamaha Select EMG 2 SCs 1 HB 2 Focus SS1 Alnico V single coils 1 SH1 Ceramic Humbucker 2 Focus SS1 Alnico V single coils 1 SH1 Ceramic Humbucker
Controls 1 Volume 1 Tone 5 way switch coil tap 1 Volume 1 Tone 5 way switch coil tap 1 Volume 1 Tone 5 way switch no coil tap 1 Volume 1 Tone 5 way switch no coil tap 1 Volume 1 Tone 5 way switch coil tap
Pickguard Black Black Black None None
Tuners Black Diecast Black Diecast Black Diecast Black Diecast Black Diecast
Nut 43mms locking 43mms locking 43mms locking 43mms locking 43mms locking
Hardware Black Black Black Black Black
Colours Black, White or Fine Red Black, White or Fine Red Black, White or Sparkling Red Black, White, Dark Blue Metallic or Super Red Black, White, Vivid Red or Green
Let's start with a headstock comparison

The V being a 1991 launch starts to get the more modern look

Some more photos


This is a 512J


A JS



a 512P


512R


And a V
