Deluxe Roadhouse



The latest model in Classic Copper Red


The Roadhouse Deluxe is a guitar that has 3 incarnations and the changes each time have been significant. So much so that they are really three different guitars. The first version was launched in 2008 the second in 2014 and the last one in 2016. A brief comparison of the specifications shows what I mean.


Dates

2016 onwards

2014 to 15

2008 to 2013

Headstock

Large with Gold spaghetti logo and 2 string trees

Large with Gold spaghetti logo and 2 string trees

Small 1 string tree Silver logo

Pickguard

3 ply white, black if Classic copper red

3 ply pearloid

3 ply brown tortoiseshell

Neck

Maple, modern C 12" radius

Maple Modern C 9.5" radius

Maple Modern c 9.5" radius

Frets

22 Narrow Tall

22 Medium Jumbo

21 Medium Jumbo

Body

Alder Gloss Poly

Alder Gloss Poly

Alder Gloss Poly

Pickups

3 Vintage Noiseless

3 Texas Specials

3 Texas Specials

Controls

Aged White 1 Volume 2 Tone

Aged White 1 Volume 2 Tone

Aged White 1 Volume 2 Tone

Switches

5 way plus S1 and V6*

5 way plus S1 and V6*

5 way

Bridge

Vintage Style 2 point trem

Vintage Style 2 point trem

Vintage Style 6 point trem

Tuners

Locking

Non locking

Non locking

Neckplate

Asymetrical with Fender written on

Rectangle Plain

Rectangle with Fender on

Colours

Olympic White or Classic Copper Red with Maple Board. Mystic Ice Blue or 3 colour Sunburst with Rosewood board

Vintage White or Candy Apple Red with Maple Board. Sonic Blue Blue or 3 colour Sunburst with Rosewood board

Black, Brown Sunburst or Arctic White all with Rosewood only.

* From 2014 onwards this guitar had an onboard pre-amp and a V6 control on the Tone knob, this gives 6 distinct tonal sounds the S1 switch on the other tone knob bypasses the pre-amp and the V6.
Pictures

A version 1 from 2008

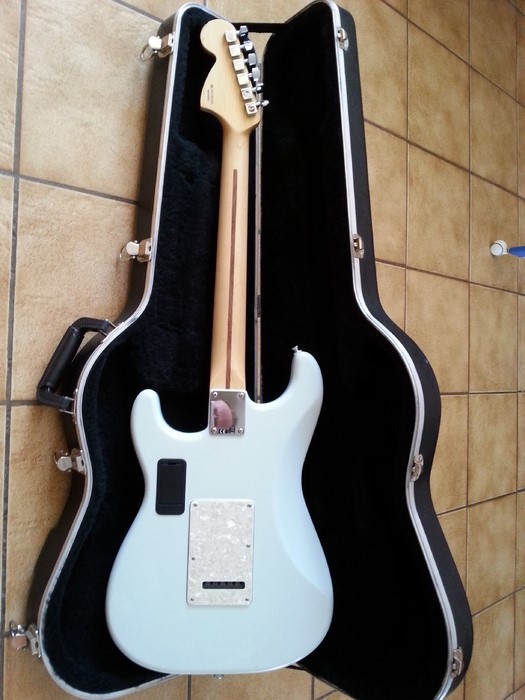

A Version 2 from 2014


A Version 3
